Beyond the SISSDEN event horizon

October 1, 2019

Between May 2016 and April 2019, The Shadowserver Foundation participated in the SISSDEN EU Horizon 2020 project (Grant Agreement 700176). The main goal of the project was to improve the cybersecurity posture of EU entities and end users through the development of situational awareness and sharing of actionable information. For a quick introduction to the project please check out our 3 minute SISSDEN project video:

The primary benefit for Shadowserver subscribers was the addition of five new report types in our free daily feeds for National CSIRTs and network owners. This blog post explains Shadowserver’s role in the project, the honeypot deployment framework architecture, data collected, new report types and our future honeypot sensor work beyond SISSDEN.

What was The Shadowserver Foundation’s role in the SISSDEN project?

The Shadowserver Foundation’s main contribution to the project was the creation of a new worldwide network of over 250 sensors (each containing many types of honeypots), operated from within the EU. These sensors logged unsolicited attack traffic directed at them into a new EU based high-throughput data processing centre. The primary passive threat data collection mechanisms (honeypots and darknets) deployed by the project were complemented by behavioural analysis of malware and multiple external data sources, both handled by other project partners. Actionable information produced by SISSDEN was then used for the purposes of no‐cost victim notification and remediation via organizations such as National CSIRTs, ISPs, hosting providers etc, via Shadowserver’s free daily victim remediation feeds. Five new report types were created.

What attacks can be observed using SISSDEN honeypot sensors?

The SISSDEN project was focused on observing client to server attacks that utilize various forms of scanning as an element of their propagation strategy. This observation of attacks was performed using honeypots and darknets (also known as network telescopes). Attacks that can be observed in this manner include various techniques used by botnets, worms and mass exploitation tools to compromise devices. Examples are various exploits against specific application vulnerabilities allowing for remote code execution, brute force attacks, exploitation of configuration errors, etc. Many attacks against IoT devices propagate in this manner. Large scale honeypot networks are therefore uniquely positioned to observe IoT attacks at scale. Common threats observed include Mirai and its variants, as well as worms such as Wannacry (those Wannacry variants that have had their binaries patched to use different kill-switch domains). Other types of attacks that can be observed include port scanning, reflected amplification DDoS attacks and attempts to send spam through open relays. Aside from simply observing the attacks themselves, the multiple honeypots deployed per sensor location had the capability to collect malicious artifacts associated with a successful attack – this malware can then be subsequently analyzed in sandboxes, which can lead to the discovery and mapping out of the underlying botnet or malware C&C infrastructure involved in attacks.

SISSDEN Honeypot Sensor overview (World) at Project End (April 2019)

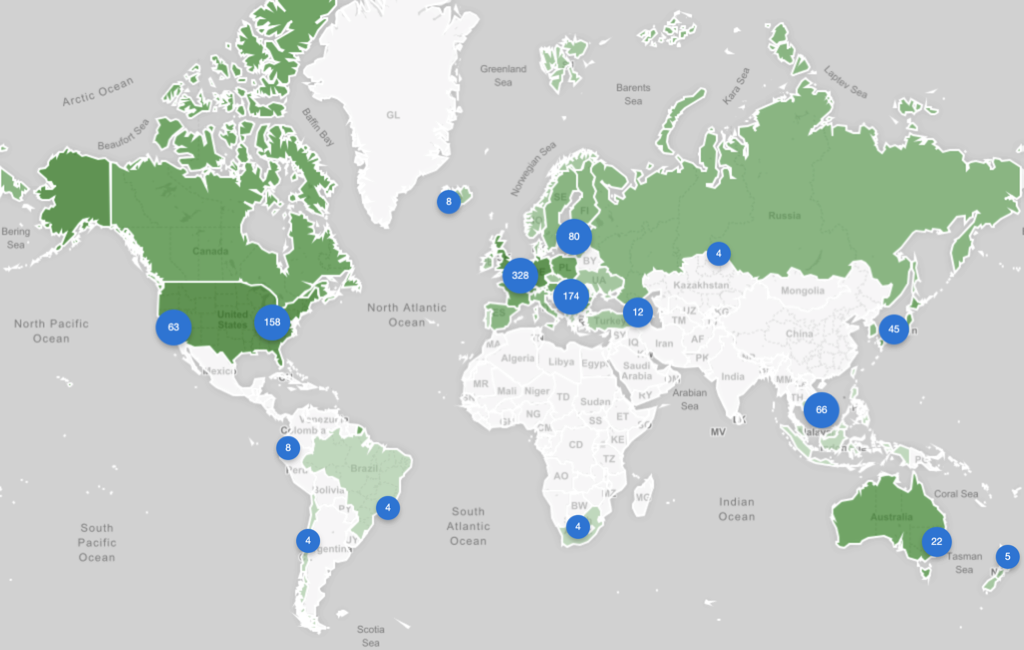

Figure 1: IP address allocation of the SISSDEN honeypot sensor network

The primary data collection mechanism at the heart of the SISSDEN project was a sensor network composed of many honeypots. As of the end of the project in April 2019, 257 individual sensor nodes have been delivered, located in 59 countries. These sensors had 974 IP addresses allocated to them, from 119 different ASNs, and had interfaces present in 383 unique /24 (Class C) network ranges.  Figure 1 illustrates the IP distribution of the sensors worldwide. Countries in green host at least 1 sensor IP. The darker the shade of green the more sensor IP address are hosted in that country.

The SISSDEN Platform Architecture

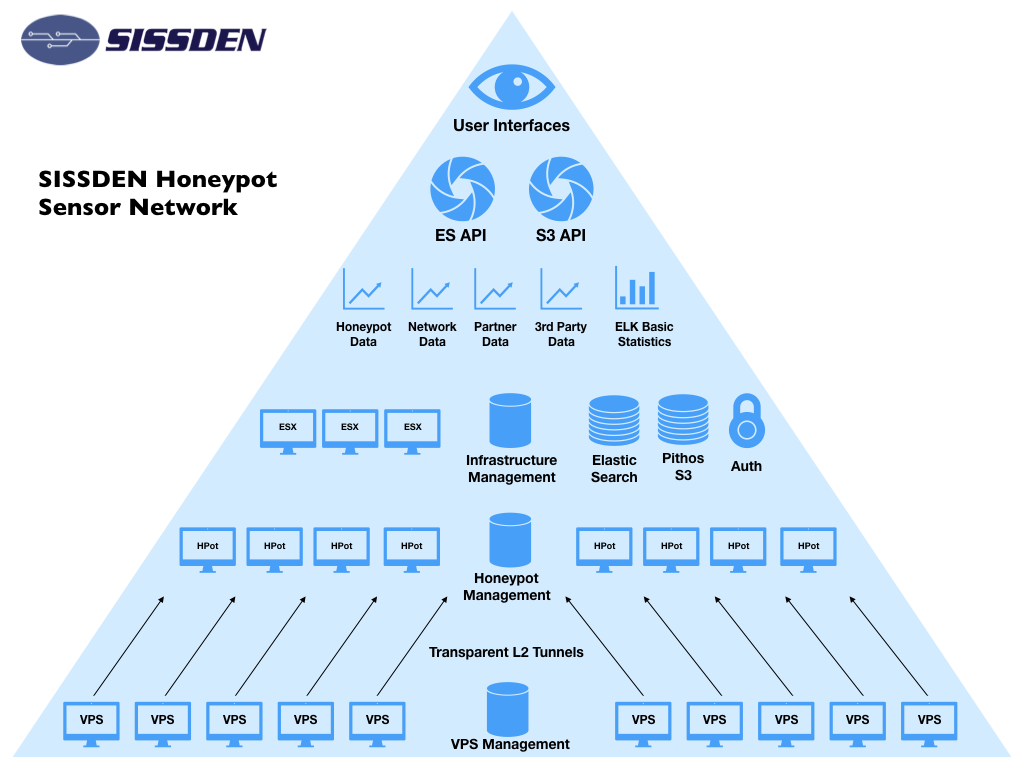

Figure 2. High level overview of the SISSDEN honeypot platform architecture

The SISSDEN sensor network was composed of Virtual Private Server (VPS) provider hosted nodes, procured at a cost from the VPS providers, and nodes donated to the project by third-parties, all acting as endpoints. These VPS nodes are not the actual honeypots themselves. Instead, they act as transparent layer 2 Ethernet tunnels to the SISSDEN European datacenter. Attack traffic directed at IP addresses assigned to the VPS nodes was delivered via these transparent layer 2 tunnels to corresponding VMs in the datacenter which ran the actual honeypots themselves, in the form of dockerized containers. The honeypots in the datacenter then responded to attacks against the tunnelled IP addresses from the VPS nodes. From the point of view of the attacker, this layer 2 tunneling was invisible and it appeared that all network communications came from the VPS nodes themselves.

The architecture deployed allowed for easier management of the honeypots. Instead of having to remotely manage (and remotely maintain) honeypots at the individual VPS provider locations, all honeypots could be standardized and centrally managed in one datacenter instead.

The Shadowserver Foundation developed specialist VPS and honeypot management software that allows fast and semi-automated deployment and management of honeypots on a large scale. SISSDEN also carried out improvements or extensions to multiple honeypot technologies to standardize the way log event data or other object related data was recorded. Multiple sets of open source honeypot code changes have already been accepted by the corresponding authors of the relevant code and integrated in their respective upstream main releases. The software we developed managed the technical configuration, deployment, OS and application software packages, and security patching of the procured VPS nodes, as well as communication with the VPS providers. Most importantly, it enabled a near seamless point and click deployment of new honeypots by an operator through a web-based management interface.

Multiple types of honeypot systems were deployed within SISSDEN, in the form of multiple VM instances running honeypots packaged in docker containers. Each honeypot VM emulated different services with one or more potential vulnerabilities and collected data about attacks observed against those services. Honeypots located in the SISSDEN backend had a standard configuration and standard data collection formats, and were injected into appropriate transparently tunneled network VLANs to collect attack data using the IPv4 addresses that were transparently layer 2 tunneled from the target VPS Provider network.

Honeypot event data was live streamed to a publish/subscribe (pub/sub) message broker system (HPFeeds). Multiple clients push and pull data from these message broker channels in real time, such as for ingesting published event data into the backend data storage systems. The Amazon S3 protocol was used to transport binary object data (such as malware or PCAP files) to the locally hosted backend (rather than the Amazon cloud).

The honeypots deployed were modified to support HPFeeds (for events) and/or Amazon S3 (for binary object transfer) when necessary. In the case of HPFeeds, there must be appropriate event data generated that can be sent to a particular channel; in the case of Amazon S3, the honeypot must capture malware binaries or packet capture files which can be stored on the backend using a locally hosted Pithos S3 instance (rather than the Amazon cloud). Shadowserver has heavily contributed to HPFeeds development through the SISSDEN project, improving the broker’s resilience and scalability, as well as merging multiple bugfixes into the official HPFeeds version. On average, the SISSDEN HPFeeds broker processed around 250-300 live honeypot detected events per second.

The main backend data storage component was implemented using two open source software solutions: Elasticsearch (for storing event data) and Pithos S3 (a locally hosted, on premises version of Amazon S3, for storing binary object data). Access to these systems was exposed using their respective native APIs. A single sign-on (SSO) and access control solution was developed to authenticate and proxy all connections to these APIs. The SSO proxy handled on average around 100 connections per second.

All traffic to the honeypots was captured at a network level using Moloch, an open source, large scale, full packet capturing, indexing, and database system. Network event data captured by Moloch was stored in the main SISSDEN Elasticsearch cluster. Moloch saved PCAP data to the SISSDEN Pithos S3 cluster, allowing multiple capture nodes to scale PCAP storage through the central S3 object store cluster. The locations of stored S3 PCAP files were indexed in Elasticsearch, allowing easy search and data retrieval. The Suricata IDS was deployed as part of  Moloch to enrich the dataset with IDS alerts. 150-200 GBytes of PCAP data to sensors was captured on an average day.

What honeypot types were deployed?

The honeypots deployed as part of the core sensor network at the end of the H2020 SISSDEN project pilot included:

Honeypot Type Description Instances running (as of 28th April 2019) Attack events collected (from 1st May 2018 to 28th April 2019) Official Pilot Data collection start (note some honeypots were deployed earlier)
CiscoASA Cisco ASA honeypot 25 13 784 May 2018
Conpot ICS/SCADA honeypot 94 3 342 793 May 2018
Cowrie SSH/Telnet honeypot 94 463 004 791 May 2018
Dionaea Multipurpose honeypot 94 7 687 933 February 2019
Django-admin Django honeypot 10 1 April 2019
Elasticpot Elasticsearch honeypot 94 104 555 May 2018
Glastopf Web honeypot 94 39 653  356 May 2018
Heralding Credential catching honeypot 94  552 161 401
(auth logs)
November 2018
Honeypy Multipurpose honeypot 10 199 562 984 March 2019
MICROS MICROS honeypot 15 47 873 January 2019
Rdpy Remote desktop honeypot 10 45 140 April 2019
Spampot Spam catching honeypot 90 811 393 073 May 2018
Struts Apache Struts Honeypot 10 21 245 February 2019
Weblogic Weblogic honeypot 15 7028 January 2019

For the period from May 1st 2018 till project end, the honeypots deployed as part of the SISSDEN sensor network collected over 2,000,000,000 attack events. Note that in the table above, the amounts of events collected by honeypots cannot be easily compared to each other, as some honeypots logged whole sessions as attack events, while other honeypots logged each individual action that was carried out.

Report types introduced

Free victim remediation reports to the security community worldwide are the core output of the SISSDEN Project.

The honeypots deployed as part of the core sensor network or partner systems, as well as one of the darknets, have contributed directly to the main objective of the SISSDEN project – delivery of new free daily victim remediation feeds to National CSIRTs and network owners via The Shadowserver Foundation.

The Horizon 2020 SISSDEN project enabled 5 new report types, 4 of which are created from honeypot deployments and 1 from a network telescope (darknet) deployment. The full list of new SISSDEN reports sent out by The Shadowserver Foundation is as follows:

  • The Brute Force report (on IPs performing brute force attacks coming primarily from IoT botnets)
  • The HTTP Scanner report (on IPs performing HTTP-based scanning and/or exploitation)
  • The ICS Scanner report (on IPs targeting ICS/SCADA protocol aware devices)
  • The Amplification DDoS Victim report (on IPs that are victim of DDoS Amplification Attacks)
  • The Darknet report (a darknet based report that fingerprints IPs exhibiting Mirai-like activity)

Additionally, an older  Spam-URL report offered by Shadowserver that includes data from spam messages that have a URL embedded in them has also been enhanced with SISSDEN data.

Up to 31 million attack events were reported to the report recipients worldwide from May 1st 2018.

While the Horizon 2020 SISSDEN project has now been completed, a number of other Shadowserver honeypot sensor networks are now also contributing to the still active Drone Brute Force Report. The Amplification DDoS Victim report continues to go out courtesy of CISPA.  The other new reports will be re-enabled once a new post-Horizon 2020 SISSDEN project honeypot sensor network is up and running (see “Future work” below).

Anyone wishing to subscribe to the above reports and more should apply for our free daily remediation feeds.

Future work

Although the Horizon 2020 SISSDEN Project formally ended in April 2019, Shadowserver has successfully partnered with NASK, one of the original SISSDEN partners, to obtain additional EU funding through the EU CEF calls to build a new sensor network. This deployment will be based on updated SISSDEN technology and a new sensor network should be operational from October 2019. In addition to contributing to feeds, the new network will serve as the basis for offering a Honeypots-as-a-Service (H-a-a-S) framework to EU National CSIRTs. Stay tuned for more updates on this new sensor network and H-a-a-S soon! In the meantime, if you would like to contribute honeypot technology to the new project or host a sensor, please contact us to discuss potential collaboration.
